FTC164 > FTC164 First Start

FTC164

KNOW YOUR DEVICE

SET UP YOUR DEVICE

	Physical SIM card insertion/removal must be performed when device is powered off – external voltage disconnected. Otherwise, the SIM card might be damaged or device will not detect it.

File:FTC164 setup.png

HOW TO REMOVE COVER

	Device casing is designed to be water-proof and match requirements for IP69K. Please note that once the cover is fully clipped it will require additional plastic pry tools to be opened! Please make sure to review short walkthrough video for more details:

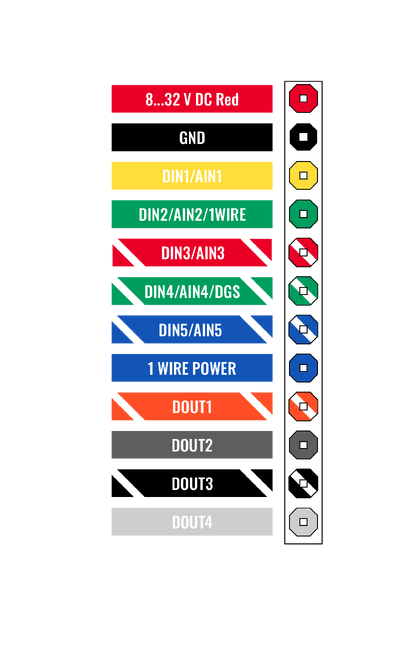

PINOUT

PIN NUMBER	PIN NAME	DESCRIPTION
1	VCC	(Red) Power supply (+8-32V V DC) (+).
2	GND	(Black) Ground (-).
3	DIN1/AIN1	(Yellow) Digital input 1 / Analog input 1.
4	DIN2/AIN2/1WIRE	(Green) Digital input channel 2 / Analog input channel 2 / 1-WIRE.
5	DIN3/AIN3	(Red/White) Digital input channel 3 / Ground sense / Analog input channel 3.
6	DIN4/AIN4/DGS	(White/Green) Digital input channel 4 / Ground sense / Analog input channel 4.
7	DIN5/AIN5	(White/Blue) Digital input channel 5 / Ground sense / Analog input channel 5.
8	1WIRE POWER	(Blue) +3.8 V output for 1-Wire devices.
9	DOUT1	(White/Orange) Digital output channel 1.
10	DOUT2	(Dark Grey) Digital output channel 2.
11	DOUT3	(Black/White) Digital output channel 3.
12	DOUT4	(Light Grey) Digital output channel 4 .

PC CONNECTION (WINDOWS)

HOW TO INSTALL USB DRIVERS (WINDOWS)

Please download COM port drivers from here.
Extract and run TeltonikaCOMDriver.exe.
Click Next in driver installation window.
In the following window click Install button.
Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup.

CONFIGURATION (WINDOWS)

Most Teltonika devices are shipped with default factory settings. Use Telematics Configuration Tool (TCT) to change these settings according to your needs.

	TCT
Operating system	Windows 10 Windows 11
MS .NET Framework version	MS .NET framework 6.0
Version	64 bit
Disk Storage	1 GB of free disk space
Internet	Ethernet port or Wi-Fi w/ network access for auto-update

TCT

Download the TCT (compressed archive).
Extract the archive and launch the executable. The TCT will be installed.
Launch the TCT.
In the Discovered devices list, select your device and press Configure.
The Device status window opens. It contains device, GNSS and Cellular information.

Save to device – saves configuration to device.

Upload file – loads configuration from file.

Save to file – saves configuration to file.

Update – update device firmware.

Reset configuration – sets device configuration to default.

Most important configuration sections are Mobile network (Server, Mobile network settings) and Tracking settings (data collection parameters). More details about FTC164 configuration using TCT can be found here.

QUICK SMS CONFIGURATION

The default configuration ensures best track quality and optimal data usage.

Quickly set up your device by sending this SMS command to it:

DEFAULT CONFIGURATION SETTINGS

After successful SMS configuration, FTC164 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using TCT or Parameter list.

MOUNTING RECOMMENDATIONS

LED INDICATIONS

This section is an explanation of LED indications on FTC164 device.

NAVIGATION LED INDICATIONS

Behaviour	Meaning
Blinking every second	GNSS module is working, GNSS fix is acquired (normal operation)
Permanently switched on	GNSS module is working, but fix is not acquired (no position)
Off	GNSS module is off because: (a) the device is not working or (b) the device is in sleep mode

STATUS LED INDICATIONS

Behaviour	Meaning
Blinking every second	Device is working, GPRS session is active (normal operation)
On	Device is working, no active GPRS sessions
Off	Device is not working

BASIC CHARACTERISTICS

Product
Model Name	FTC164-MDAB0 FTC164-MEAB0
Module
Name	FTC164-MDAB0: MeiG SLM336-E FTC164-MEAB0: MeiG SLM336-L
Technology	LTE CAT1/GSM/GPRS/GNSS
GNSS
GNSS	GPS, GLONASS, GALILEO, BEIDOU
Receiver	135 tracking/acquisition channels
Tracking sensitivity	-165 dBm
Position Accuracy	< 1.8 m CEP
Velocity Accuracy	< 0.1 m/s (within +/- 15% error)
Hot start	-
Warm start	-
Hot start	-
Cellular
Technology
2G bands	FTC164-MDAB0: GSM: B2/B3/B5/B8 FTC164-MEAB0: GSM: B2/B3/B5/B8 /td>
4G bands	FTC164-MDAB0: LTE-FDD (CAT1): B1/B3/B5/B8/B20/B28 FTC164-MEAB0: LTE-FDD (CAT1): B2/B3/B4/B5/B7/B8/B28/B66
Data transfer	LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL) GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit power	Class 4 for GSM850/900: 33±2dBm Class 1 for GSM1800/1900: 30±2dBm Class 3 for LTE FDD: 23±2.7dBm
Data support	SMS (TEXT, PDU), Network protocols (TCP, UDP)
Data Codec
Codec support	Codec 8 Extended
Power
Input voltage range	8-32 V DC
Back-up battery	2600mAh Li-Ion battery, 3.7V (9.620 Wh)
Internal fuse	3A, 125V
Power Consumption	At 12V < 25 mA (nominal with no load) At 12V < 0.25A Max (with full Load/Peak)
Physical Specification
Dimensions	87.75 x 106.40 x 29.70 mm (L x W x H)
Weight	147g
Operating Environment
Operating temperature (without battery)	-30°C to +85°C
Storage temperature (without battery)	-30°C to +85°C
Operating temperature (with battery)	-20°C to +60°C
Storage temperature (with battery)	-10°C to +25°C
Operating humidity	5% to 95% non-condensing
Ingress protection rating	IP69K
Battery charge temperature	-
Battery discharge temperature	-20°C to +60°C
Battery storage conditions	-10°C to +50°C - 1 month -10°C to +35°C - 3 months 0°C to +30°C - 12 months
Interface
Digital Inputs	5
Negative Inputs	1
Digital Outputs	1
Analog Inputs	1
1-Wire	1
GNSS antenna	Internal High Gain
GSM antenna	Internal High Gain
USB	USB 2.0 USB Type-C
LED indication	2 status LED lights
SIM	Nano-SIM
Memory	128MB internal flash memory
Features
Sensors	Accelerometer
Scenarios	Eco Driving, Over Speeding, Idling Detection, Imobilizer, Unplug Detection, Jamming Detection, Crash Detection, Dallas Sensor Support, Towing Detection
Sleep modes	Online Slee, Deep Sleep, Power off Sleep
Configuration and firmware update	FOTA WEB, Telematics Configuration Tool (TCT)
SMS	Configuration, DOUT control, Debug
GPRS commands	Configuration, DOUT control, Debug
Time Synchronization	GNSS, NTP, NITZ
Ignition detection	Digital Input 1, Accelerometer, External Power Voltage
Certification & approvals
Regulatory	TBA
