Revision as of 09:10, 26 August 2025

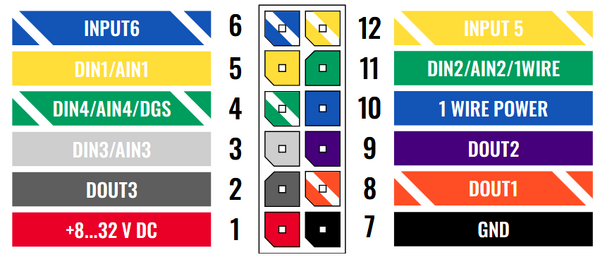

PINOUT
| PIN NUMBER | PIN NAME | DESCRIPTION |
 |
|---|---|---|---|
| 1 | VCC | (Red) Power supply (+10-30 V DC) (+). | |
| 2 | DOUT3 | (Grey) Digital output channel 3. | |
| 3 | DIN3/AIN3 | (White) Digital input channel 3 / Analog input channel 3. | |
| 4 | DIN4/AIN1/DGS | (White/Green) Digital input channel 4 / Ground sense / Analog input channel 4. | |
| 5 | DIN1/AIN1 | (Yellow) Digital input 1 / Analog input 1. | |
| 6 | INPUT6 | (White/Blue) TX EXT (LVCAN – TX). | |
| 7 | GND | (Black) Ground (-). | |
| 8 | DOUT1 | (White/Orange) Digital output channel 1. | |
| 9 | DOUT2 | (Purple) Digital output channel 2. | |
| 10 | 1WIRE POWER | (Blue) +3.8 V output for 1-Wire devices. | |
| 11 | DIN2/AIN2/1WIRE DATA | (Green) Digital input channel 2 / Analog input 2 / Data for 1-Wire devices. | |
| 12 | INPUT1 | (White/Yellow) RX EXT (LVCAN – RX). |
