FMC150 TAC codes

From Wiki Knowledge Base | Teltonika GPS
Main Page > CAN Trackers & Adapters > FMC150 > FMC150 Nomenclature, classification codes > FMC150 TAC codes

The Type Allocation Code (TAC) is the initial eight-digit portion of the 15-digit IMEI and 16-digit IMEISV codes used to uniquely identify wireless devices.

Description

The Type Allocation Code identifies a particular model (and often revision) of wireless device for use on a GSM, UMTS or other IMEI-employing wireless network.

The first two digits of the TAC are the Reporting Body Identifier. This indicates the GSMA-approved group that allocated the TAC.

Prior to January 1, 2003, the global standard for the IMEI started with a six-digit Type Approval Code followed by a two-digit Final Assembly Code (FAC). The Type Approval Code (also known as TAC) indicated that the particular device was approved by a national GSM approval body and the FAC identified the company that had built and assembled the device (which is not always the same as the brand name stamped on the device). Effective on that date, many GSM member nations and entities (mainly Europe) moved away from requiring that devices be approved by national bodies, and towards a system where device manufacturers self-regulate the device market. As a result, a manufacturer now simply requests an eight-digit Type Allocation Code for a new devie model from the international GSM standards body, instead of submitting a device for approval to a national review body. Both the old and new TAC uniquely identify a model of a device, although some models may have more than one code, depending on revision, manufacturing location, and other factors.

Attachments

TAC codes for Quectel EG91U-EU (used in FMC150 products) are as follows:

Production codes Model TAC
Quectel EG915U-EU 86634405
Quectel EG915U-LA 86541305
Quectel EG915U-EU 86445407
Quectel EG915U-LA 86967107
Quectel EG915U-EU 86774707
Quectel EG915U-LA 86323807
Quectel EG915U-EU 86837307

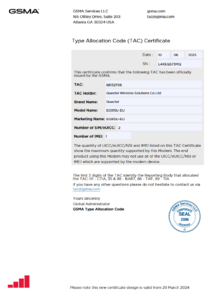

Quectel EG915U-EU TAC 86634405 page-0001.jpg
Quectel EG915U-LA TAC 86541305 page-0001.jpg
Quectel EG915U-EU TAC 86445407 page-0001.png
Quectel EG915U-LA TAC 86967107 page-0001.png
Quectel EG915U-LA TAC 86774707 page-0001.png
Quectel EG915U-LA TAC 86323807 page-0001.png
Quectel EG915U-EU TAC 86837307 page-0001.png

You can the find PDF version of TAC:
TAC 86634405 here,
TAC 86541305 here,
TAC 86445407 here,
TAC 86967107 here,
TAC 86774707 here,
TAC 86323807 here.
TAC 86837307 here.


External links

https://www.gsma.com/

https://imeidb.gsma.com/imei/index#
