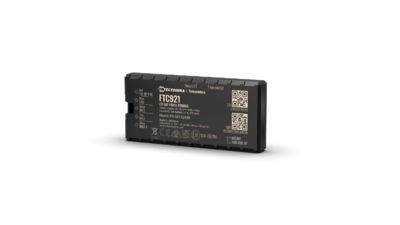

Next-generation high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy.
FTC921

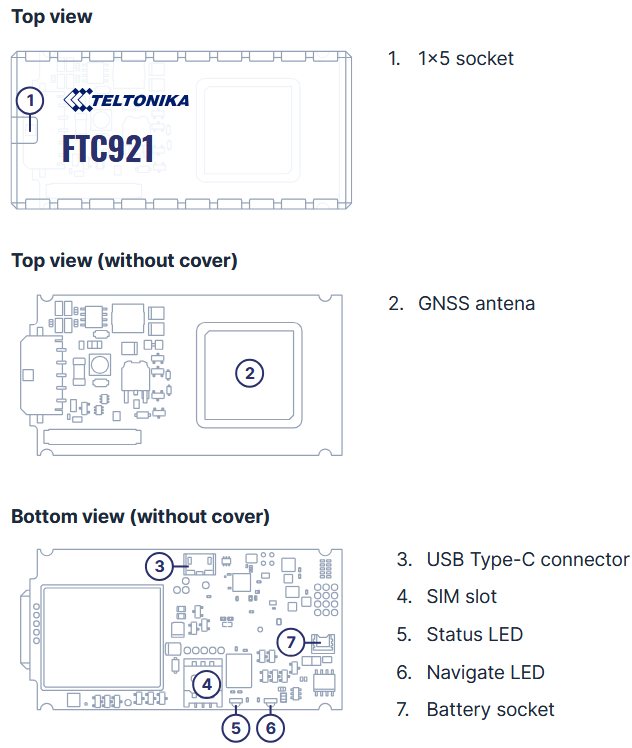

KNOW YOUR DEVICE

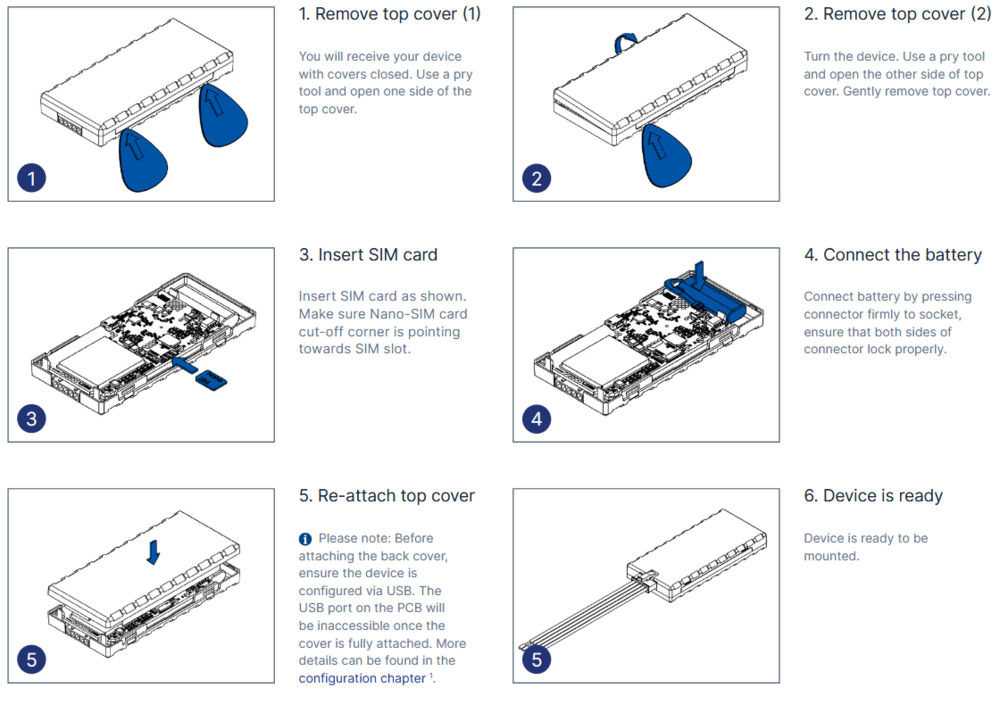

SET UP YOUR DEVICE
Physical SIM card insertion/removal must be performed when device is powered off – external voltage disconnected. Otherwise, the SIM card might be damaged or device will not detect it.
PINOUT
PIN NUMBER
PIN NAME
DESCRIPTION
1
VCC
(Red) Power supply (+10-90 V DC) (+).
2
GND
(Black) Ground (-).
3
DIN1
(Yellow) Digital input, channel 1. DEDICATED FOR IGNITION INPUT. Input range: 7.5-90 V DC.
4
AIN1
(Grey) Analog input, channel 1. Input range: 0-90 V DC.
5
DOUT1
(White) Digital output. Open collector output. Max. 0,5 A DC.
PC CONNECTION (WINDOWS)
Power-up FTC921 with DC voltage (10-90V) power supply using power wires. LEDs should start blinking, see "LED BEHAVIOUR DESCRIPTION".
Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup.
CONFIGURATION (WINDOWS)
Most Teltonika devices are shipped with default factory settings. Use Telematics Configuration Tool (TCT) to change these settings according to your needs.
TCT
Operating system
Windows 10 Windows 11
MS .NET Framework
version
MS .NET framework 6.0
Version
64 bit
Disk Storage
1 GB of free disk space
Internet
Ethernet port or Wi-Fi w/ network access for auto-update
TCT
Download the TCT (compressed archive).
Extract the archive and launch the executable. The TCT will be installed.
Launch the TCT.
In the Discovered devices list, select your device and press Configure.
The Device status window opens. It contains device, GNSS and Cellular information.
Save to device – saves configuration to device.
Upload file – loads configuration from file.
Save to file – saves configuration to file.
Update – update device firmware.
Reset configuration – sets device configuration to default.
Most important configuration sections are Mobile network (Server, Mobile network settings) and Tracking settings (data collection parameters). More details about FTC921 configuration using TCT can be found here.
QUICK SMS CONFIGURATION
The default configuration ensures best track quality and optimal data usage.
Quickly set up your device by sending this SMS command to it:
DEFAULT CONFIGURATION SETTINGS
After successful SMS configuration, FTC921 device will synchronize time and update records to configured server. Time
intervals and default I/O elements can be changed by using TCT or Parameter list.
MOUNTING RECOMMENDATIONS
CONNECTING WIRES
Wires should be fastened to stable wires or other non-moving parts. Any heat emitting and/or moving objects should be kept away from the wires.
There should be no exposed wires. If factory isolation was removed while connecting wires, the isolation material should be applied.
If the wires are placed in the exterior or in places where they can be damaged or exposed to heat, humidity, dirt, etc., additional isolation should be applied and the wires should not be loose.
Wires cannot be connected to the board computers or control units.
CONNECTING POWER SOURCE
Be sure that after the car computer goes to sleep mode, power might be still available on the power wires. Depending on car, this may happen in 5 to 30 minutes period.
When module is connected, measure voltage again to make sure it did not decrease.
It is recommended to connect to the main power cable in the fuse box.
3 A, 125 V external fuse shall be used.
CONNECTING GROUND WIRE
Ground wire is connected to the vehicle frame or metal parts that are fixed to the frame.
If the wire is fixed with the bolt, the loop must be connected to the end of the wire.
For better contact scrub paint from the spot where loop is going to be connected.
LED INDICATIONS
This section is an explanation of LED indications on FTC921 device.
NAVIGATION LED INDICATIONS
Behaviour
Meaning
Permanently switched on
GNSS signal is not received
Blinking every second
Normal mode, GNSS is working
Off
GNSS is turned off because: Device is not working or Device is in sleep mode
