FTM134 First Start
KNOW YOUR DEVICE

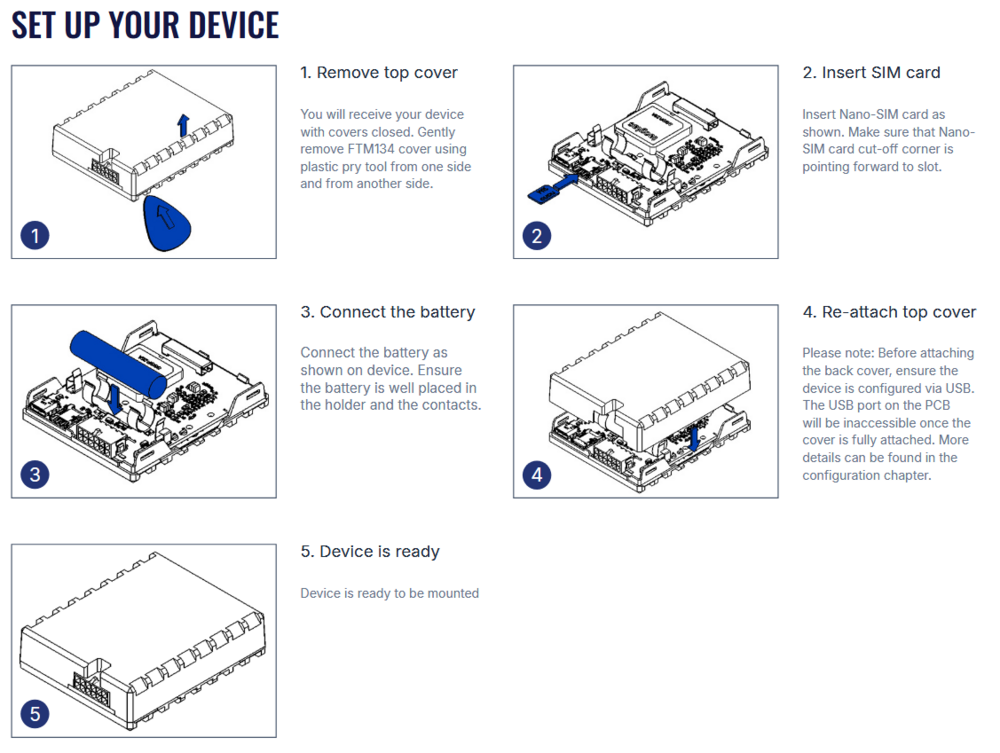

SET UP YOUR DEVICE
 |
Physical SIM card insertion/removal must be performed when device is powered off – external voltage disconnected. Otherwise, the SIM card might be damaged or device will not detect it. |
HOW TO REMOVE COVER
| |
Device casing is designed to be water-proof and match requirements for IP69K. Please note that once the cover is fully clipped it will require additional plastic pry tools to be opened! Please make sure to review short walkthrough video for more details: |

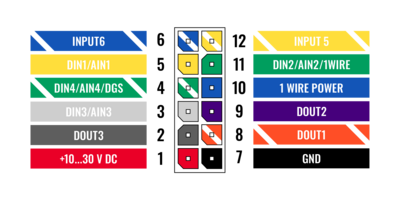

PINOUT
| PIN NUMBER | PIN NAME | DESCRIPTION |
 |
|---|---|---|---|
| 1 | VCC | (Red) Power supply (+10-30 V DC) (+). | |
| 2 | DOUT3 | (Grey) Digital output channel 3. | |
| 3 | DIN3/AIN3 | (White) Digital input channel 3 / Analog input channel 3. | |
| 4 | DIN4/AIN4/DGS | (White/Green) Digital input channel 4 / Ground sense / Analog input channel 4. | |
| 5 | DIN1/AIN1 | (Yellow) Digital input 1 / Analog input 1. | |
| 6 | INPUT6 | (White/Blue) TX EXT (LVCAN – TX). | |
| 7 | GND | (Black) Ground (-). | |
| 8 | DOUT1 | (White/Orange) Digital output channel 1. | |
| 9 | DOUT2 | (Purple) Digital output channel 2. | |
| 10 | 1WIRE POWER | (Blue) +3.8 V output for 1-Wire devices. | |
| 11 | DIN2/AIN2/1WIRE DATA | (Green) Digital input channel 2 / Analog input 2 / Data for 1-Wire devices. | |
| 12 | INPUT5 | (White/Yellow) RX EXT (LVCAN – RX). |
PC CONNECTION (WINDOWS)
- Power-up FTM134 with DC voltage (10-30V) power supply using power wires. LEDs should start blinking, see "LED BEHAVIOUR DESCRIPTION".
- Connect device to computer using USB Type-C cable and install USB driver, see "HOW TO INSTALL USB DRIVERS (WINDOWS)".
HOW TO INSTALL USB DRIVERS (WINDOWS)
- Please download COM port drivers from here.
- Extract and run TeltonikaCOMDriver.exe.
- Click Next in driver installation window.
- In the following window click Install button.
- Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup.
CONFIGURATION (WINDOWS)
Most Teltonika devices are shipped with default factory settings. Use Telematics Configuration Tool (TCT) to change these settings according to your needs.
| TCT | |
|---|---|
| Operating system | Windows 10 Windows 11 |
| MS .NET Framework version | MS .NET framework 6.0 |
| Version | 64 bit |
| Disk Storage | 1 GB of free disk space |
| Internet | Ethernet port or Wi-Fi w/ network access for auto-update |
TCT
- Download the TCT (compressed archive).
- Extract the archive and launch the executable. The TCT will be installed.
- Launch the TCT.
- In the Discovered devices list, select your device and press Configure.
- The Device status window opens. It contains device, GNSS and Cellular information.
Save to device – saves configuration to device.
Upload file – loads configuration from file.
Save to file – saves configuration to file.
Update – update device firmware.
Reset configuration – sets device configuration to default.
Most important configuration sections are Mobile network (Server, Mobile network settings) and Tracking settings (data collection parameters). More details about FTM134 configuration using TCT can be found here.
QUICK SMS CONFIGURATION
The default configuration ensures best track quality and optimal data usage.
Quickly set up your device by sending this SMS command to it:
DEFAULT CONFIGURATION SETTINGS
After successful SMS configuration, FTM134 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using TCT or Parameter list.
MOUNTING RECOMMENDATIONS
CONNECTING WIRES
- Wires should be fastened to stable wires or other non-moving parts. Any heat emitting and/or moving objects should be kept away from the wires.
- There should be no exposed wires. If factory isolation was removed while connecting wires, the isolation material should be applied.
- If the wires are placed in the exterior or in places where they can be damaged or exposed to heat, humidity, dirt, etc., additional isolation should be applied and the wires should not be loose.
- Wires cannot be connected to the board computers or control units.
CONNECTING POWER SOURCE
- Be sure that after the car computer goes to sleep mode, power might be still available on the power wires. Depending on car, this may happen in 5 to 30 minutes period.
- When module is connected, measure voltage again to make sure it did not decrease.
- It is recommended to connect to the main power cable in the fuse box.
- 3 A, 125 V external fuse shall be used.
CONNECTING GROUND WIRE
- Ground wire is connected to the vehicle frame or metal parts that are fixed to the frame.
- If the wire is fixed with the bolt, the loop must be connected to the end of the wire.
- For better contact scrub paint from the spot where loop is going to be connected.
LED INDICATIONS
This section is an explanation of LED indications on FTM134 device.
NAVIGATION LED INDICATIONS
| Behaviour | Meaning |
|---|---|
| Blinking every second | GNSS module is working, GNSS fix is acquired (normal operation) |
| Permanently switched on | GNSS module is working, but fix is not acquired (no position) |
| Off | GNSS module is off because: (a) the device is not working or (b) the device is in sleep mode |
STATUS LED INDICATIONS
| Behaviour | Meaning |
|---|---|
| Blinking every second | Device is working, GPRS session is active (normal operation) |
| On | Device is working, no active GPRS sessions |
| Off | Device is not working |
BASIC CHARACTERISTICS
| Module | |
|---|---|
| Name | FTM134-Q2AB0: Quectel BG95-M1 FTM134-Q3AB0: Quectel BG95-M3 FTM134-Q5AB0: Quectel BG95-M6 |
| Technology | LTE CAT M1/GSM/GPRS/GNSS/BLUETOOTH®LE |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS |
| Receiver | 135 tracking/acquisition channels |
| Tracking sensitivity | -165 dBm |
| Position Accuracy | < 1.5 m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cellular | |
| 2G bands | FTM134-Q2AB0: GSM (GPRS): B2/B3/B5/B8 FTM134-Q3AB0: GSM (GPRS): B2/B3/B5/B8 FTM134-Q5AB0: GSM (GPRS): B2/B3/B5/B8 |
| 4G bands | FTM134- Q2AB0: LTE-FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
FTM134- Q3AB0: |
| Data transfer | FTM134-Q2AB0: LTE FDD (CAT M1): Max. 588Kbps (DL)/Max.1119Kbps (UL) |
| Transmit power | FTM134-Q2AB0: Class 5 for LTE FDD: 21±1.7/-3dBm |
| Data support | SMS (TEXT, PDU), Network protocols (TCP, UDP) |
| Data Codec | |
| Codec support | Codec 8 Extended |
| Power | |
| Input voltage range | 10 - 30 V DC |
| Back-up battery | 320mAh Li-Ion battery, 3.7V (1.184 Wh) |
| Internal fuse | 3A, 125V |
| Power Consumption | TBA At 12V < 24 mA (nominal with no load) At 12V < 0.25A Max (with full Load/Peak) |
| Bluetooth® Technology | |
| Specifications | 5.2 + LE |
| Physical Specification | |
| Dimensions | 77 x 63 x 21.25 mm (L x W x H) |
| Weight | 73.7g |
| Bluetooth® Technology | |
| Specification | 5.2 + LE |
| Operating Environment | |
| Operating temperature (without battery) | -30 °C to +85 °C |
| Storage temperature (without battery) | -30 °C to +85 °C |
| Operating temperature (with battery) | -20 °C to +60 °C |
| Storage temperature (with battery) | -10 °C to +25 °C |
| Operating humidity | 65 ± 20% non-condensing |
| Ingress protection rating | IP41 |
| Battery Charge Temperature | 0 °C to +45 °C |
| Battery Discharge Temperature | -20 °C to +60 °C |
| Battery Storage Conditions | -10 °C to +50 °C for 1 month -10 °C to +35 °C for 3 months 0 °C to +30 °C for 12 months |
| Interface | |
| Digital Inputs | 4 |
| Negative Inputs | 1 |
| Digital Outputs | 3 |
| Analog Inputs | 4 |
| 1-Wire | 1 |
| CAN | 1* |
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB | 2.0 USB Type-C |
| LED indication | 2 status LED lights |
| SIM | Nano-SIM |
| Memory | 128MB internal flash memory |
| Features | |
| Sensors | Accelerometer |
| Scenarios | Eco Driving, Over Speeding, Idling Detection, Imobilizer, Unplug Detection, Jamming Detection, Crash Detection, Dallas Sensor Support, Towing Detection |
| Sleep modes | Online sleep, Deep sleep, Power off sleep |
| Configuration and firmware update | FOTA WEB, Telematics Configuration Tool (TCT) |
| SMS | Configuration, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NTP, NITZ |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage |
- - Pinouts are software-defined, configurable pins that can be selected based on the user scenario. For more information, refer to the FTM134 pinouts section.
